Engineering & 3D planning

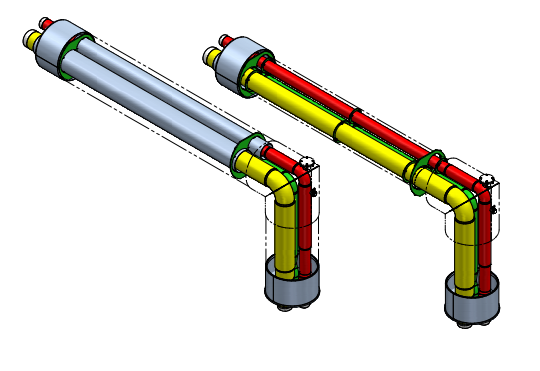

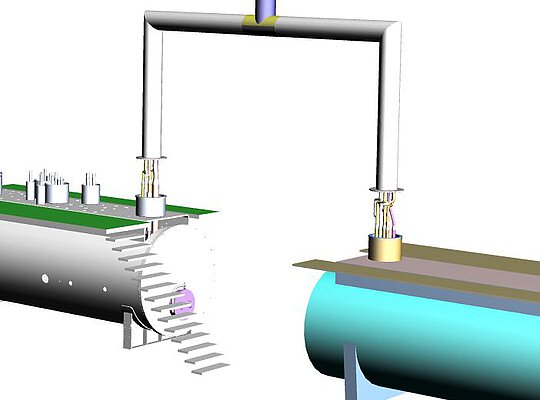

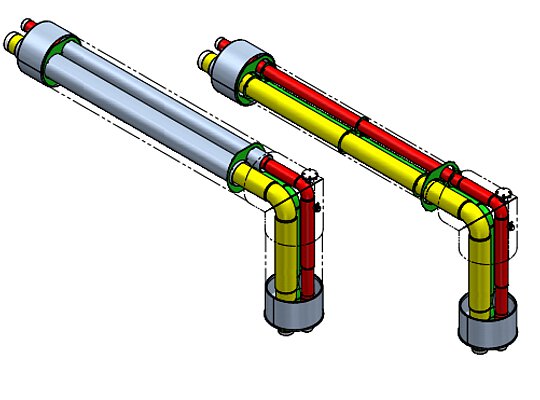

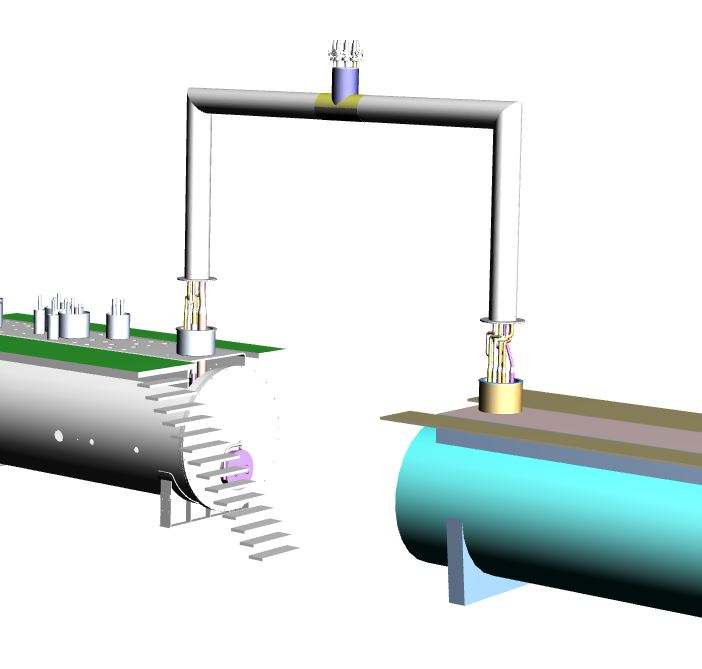

We support our customers in connection with the engineering processes for cryogenic equipment, cryogenic lines and piping construction.

Always up to date, we work with the newest digital methodologies and integrate our 3D CAD models into each customer’s overall BIM landscape.
3D design of:

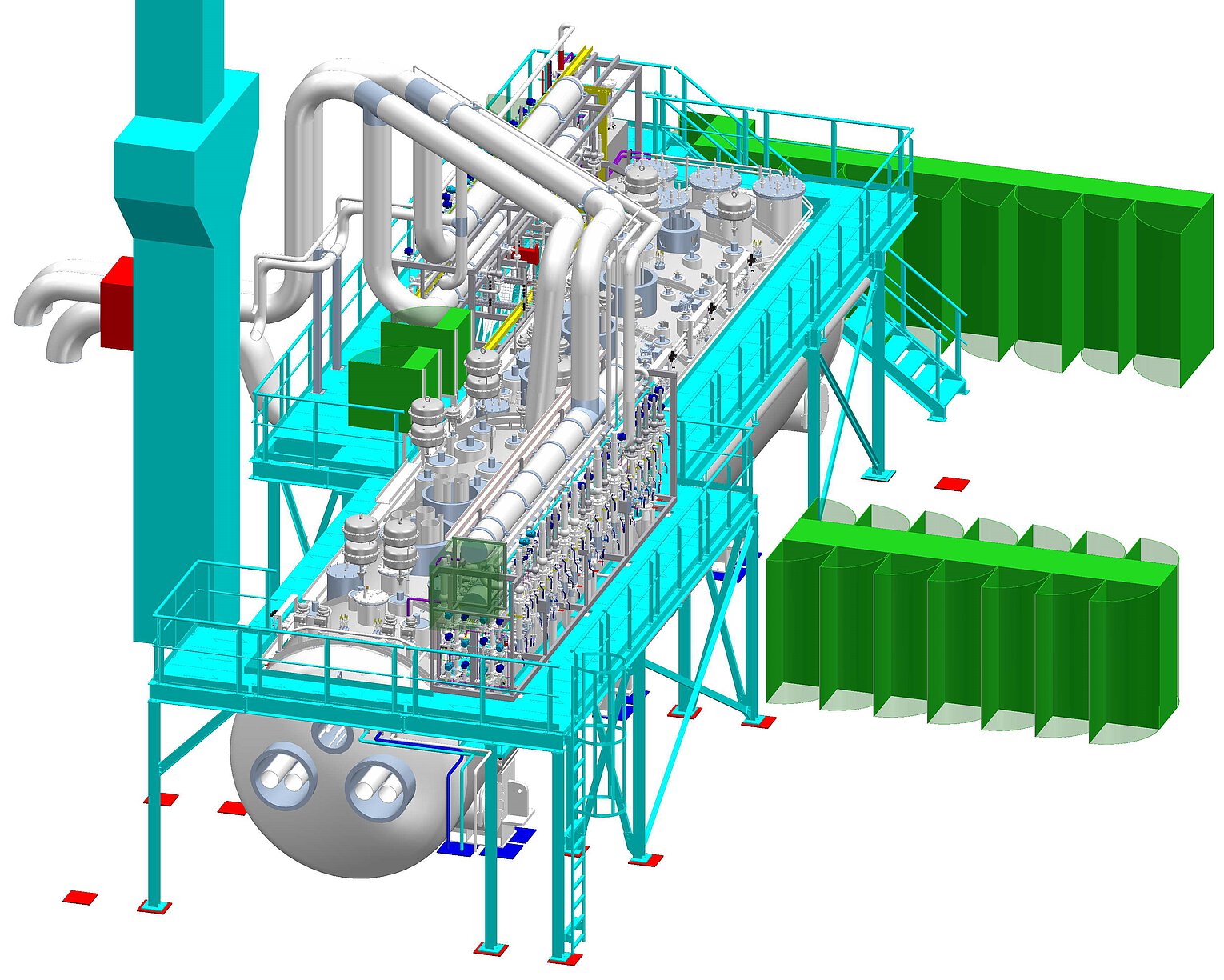

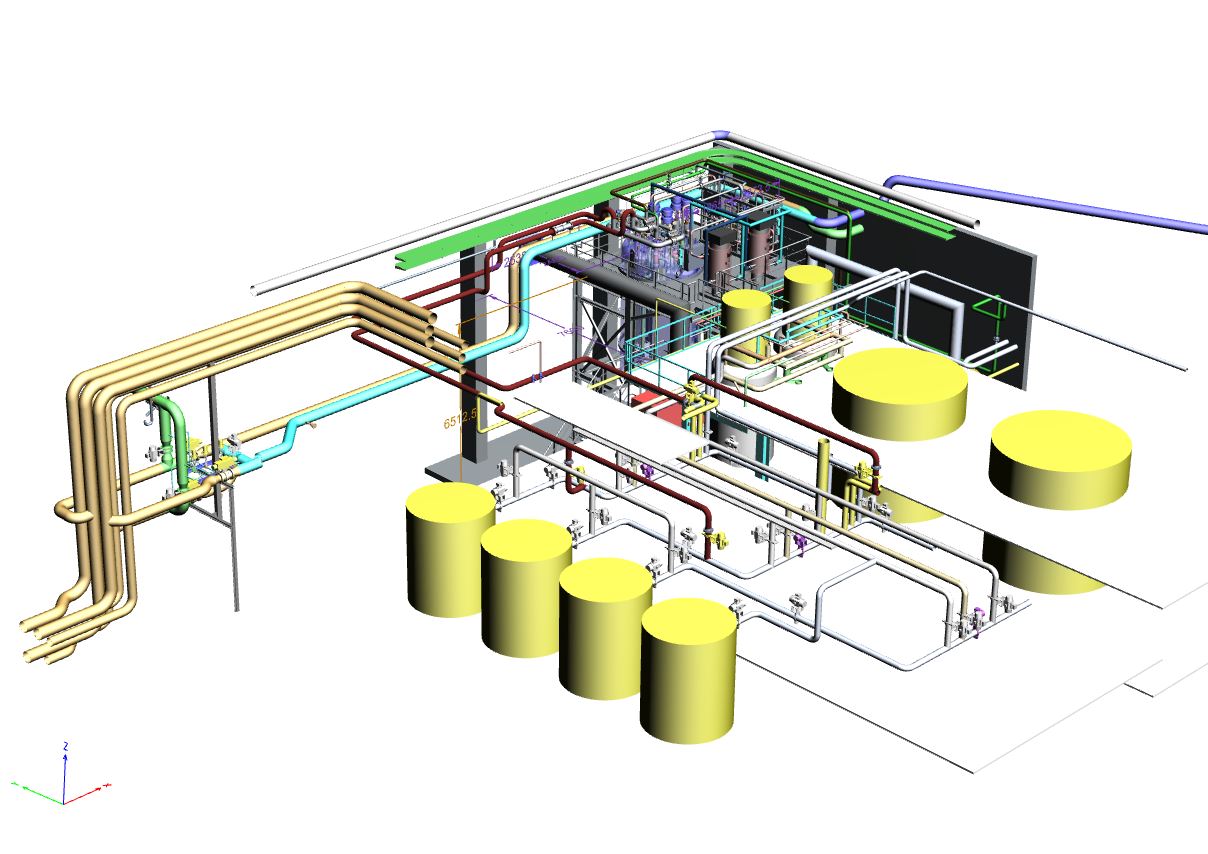

  • Gas liquefaction plant layouts, incl. piping as well as the electrical and control systems
  • Vacuum systems
  • Recovery systems
  • Gas distribution panels
  • Instrumentation panels
  • High pressure distributors
  • Piping / wiring ducts
  • Supports, holders & anchors

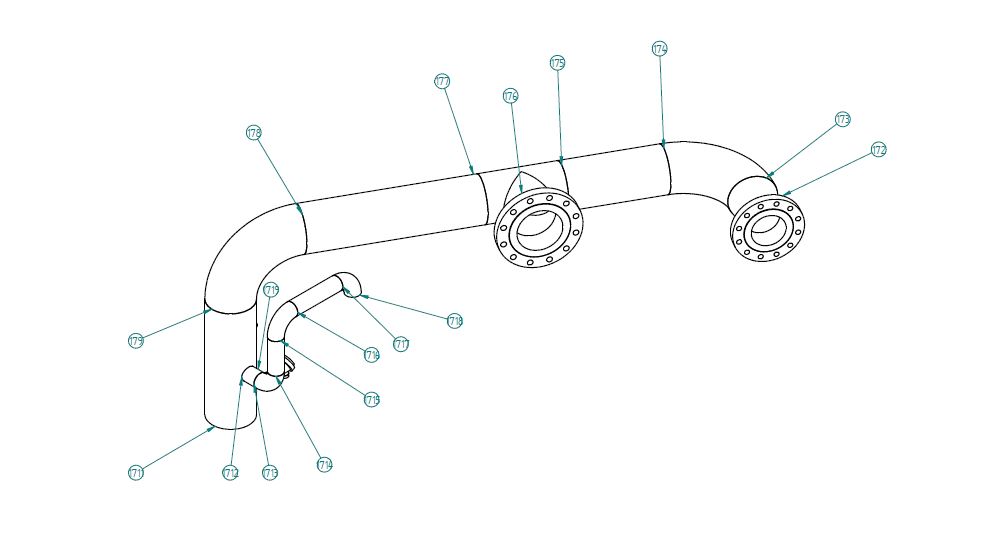

Our experienced engineers take care of your project from the very first 2D layout plan to the finished 3D model. We also implement manufacturing drawings and installation planning according to each customer’s requirements.
